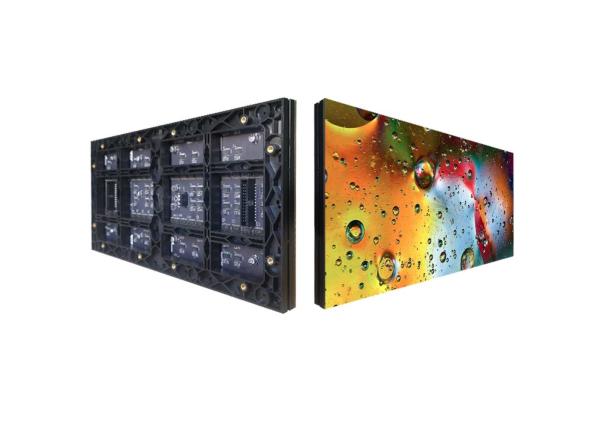

    700nits P2 Indoor LED Display Screens SMD1515 Module Advertising IP45

    Ask Lasest Price
    Brand Name : Weiye
    Model Number : Weiye Moudle
    Certification : CCC FC CE FC CB ROHS
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5,000 square meters per month
    Delivery Time : 7-12 working days after received your payment
    • Product Details
    • Company Profile

    700nits P2 Indoor LED Display Screens SMD1515 Module Advertising IP45

    Full Color P2 Led display Screens Module Indoor Advertising


    Function and Technology Character Introduction:


    1, The three-in-one surface mount LED package provides a wider viewing angle and a very close viewing distance; a variety of models and combinations can adapt to various environments and climates


    2, Low brightness and high gray, high refresh rate, 16Bit grayscale, high contrast, high refresh rate, fine, smooth and high-fidelity picture


    3, The module high-performance plastic fiber kit can effectively block moisture, dust and other substances from entering the inside of the LED display.


    4, The inside of the module is connected by a gold-plated process, which has good conductivity; the lamp beads have reverse polarity, and the brightness is higher, and the picture can be clearly displayed when facing the sun.


    Products Applications:


    Widely used in churches, control command centers, video surveillance centers, high-definition information release, conference display systems and other commercial venues


    SPECIFICATIONS Parameters:

    Pixel pitch (mm)P2
    Module size(mm)320X160mm
    Pixel density (point /㎡)250000
    Module resolution (WxH)160x80
    Pixel structureSMD1515
    scanning method1/40
    Refresh rate (Hz)≥3840Hz
    White balance brightness (nits)≥700
    Color temperature (K)1500-12000Adjustable
    Gray scale16bit
    Frame change frequency60-120Hz
    Viewing angle (horizontal/vertical°)160/160
    Protection level (front/back)IP31/IP45
    Power consumption (peak/average W/㎡)850/300


    weiye color series led strip display screen advantage:


    1, The module contains a driver chip and an input buffer chip, which can be connected to the LED display control system; the display mode can be arbitrarily arranged by the user; it can display text, pictures, charts, images, animation, and video information; and the amount of displayed information is not limited .


    2, The modules can be spliced arbitrarily in horizontal and vertical directions to form displays of different sizes.


    3, High contrast can achieve a good display effect, using ultra-bright LEDs and high-quality plastic kits.


    4, Refresh performance is more stable, computer and mobile phone control dual support, display + data cloud + APP, WIFI networking, stable performance, no flicker, good display effect, ultra-wide viewing angle of 160°, high brightness and bright colors, attracting attention.


    5. The weight is easy to install and disassemble, the LED is driven by a constant current method, the light is uniform, and the power consumption is low. Each pixel is composed of 1R1G1B.
