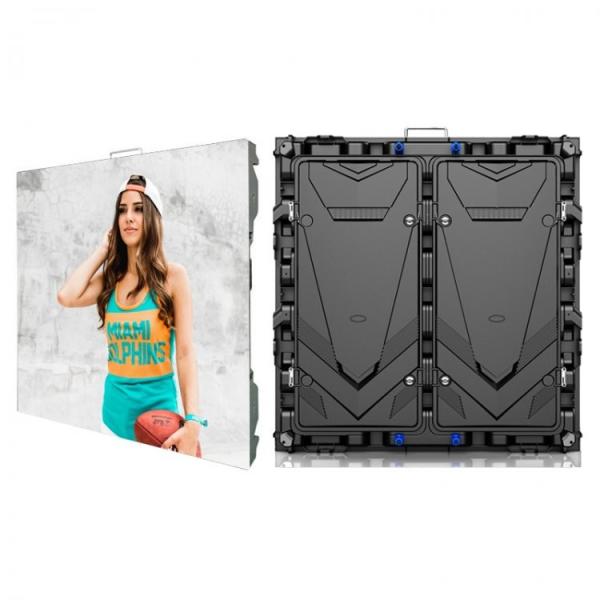

    P5.926 High Definition LED Display / 1R1G1B IP65 Outdoor Advertising Led Display

    Ask Lasest Price
    Brand Name : Weiye
    Model Number : Weiye Moudle
    Certification : CCC FC CE FC CB ROHS
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5,000 square meters per month
    Delivery Time : 7-12 working days after received your payment
    • Product Details
    • Company Profile

    P5.926 High Definition LED Display / 1R1G1B IP65 Outdoor Advertising Led Display

    P5.926 Waterproof and energy saving high definition film and television LED screen outdoor display screen


    Function and Technology Character Introduction:


    1, Ultra-clear image quality Bright colors, creating a high dynamic contrast and high-quality display effect, making the picture a strong black and white contrast, ensuring the transparency and brightness of the picture.


    2, High quality lamp beads uniform, no black screen, not a card, high brightness, ultra high-definition solid color pixel, image replacement surface is clear, no shake, eliminate distortion


    3, High contrast, using professional color management technology, showing more abundant


    4, Unique anti-electromagnetic wave treatment, distributed scanning technology, modular design makes reliability and stability more widely wide and vertical perspective and stable performance.


    5. High refresh switch does not flash, the photo is clear, the screen displays no tug, flicker, and the screen is stable


    6. The process handles high standards, high protection levels up to IP65, adapt to various harsh weather.


    7. Module UV, anti-deformed module kit, and the protection screen is flat.


    8. The dedicated driver IC is perfectly solved, the problem of high refresh rates, ensures the high-definition real picture.


    Products Applications:


    Apply to advertising, commercial office buildings, shopping malls, city parks, community service centers and other places.


    SPECIFICATIONS Parameters:


    modelP5.926-2727-7S-320x160
    LED lamp bead modelNationstarNH-Z2727RGBA-SG
    Pixel pitch (mm)5.926
    Pixel density (Dots/㎡)28476
    Pixel color configuration1R1G1B
    Pixel resolution54*27
    scanning method1/7 scan
    Brightness (cd/㎡)≥6500
    Gray level (bit)14bit
    Refresh rate (Hz)≥1920
    Mask structureWith face mask
    Horizontal viewing angle (Deg)140(±10)
    Vertical viewing angle (Deg)120(±10)
    Driver chipICND2049AP
    Row decoding methodICND2019AP
    Module size (L*W)320*160mm
    Module weight (g)≤510
    Flatness of module mask≤0.2mm
    Module maximum current (Ampere)R:≤3A GB:≤5A
    Input voltage (DC)R:2.8V/GB:3.8V
    Maximum power consumption of the module (W)≤28W
    Maximum power consumption (W/m²)≤600
    Average power consumption (w/㎡)≤150-180
    Module installation structureInstall from the back
    Mean time between failures≥10000 hours
    Service life≥100000 hours
    Use environmentoutdoor
    Working temperature range (℃)-10℃-60℃
    Working humidity range (RH)(30%-85%)
    Storage temperature range (℃)0℃-40℃
    Storage humidity range (RH)35%-60%
    waterproof levelIP65


    FAQ

    1) Q: How is the after sales service?

    A: We have a professional team which is in all around the world, also a service hot-line dealing with your complains and feedback. We also offer 24-hour online service to help you solving problems


    2) Q: What is your current lead time?​


    A: usually no more than 20 days; and some products are in stock for quick delivery


    3) Q: What’s your warranty of your products ?


    A: usually 2 years, counted from the date goods reaching clients.


    4) Q: Why so many clients choose WeiyeLED?​

    A: Our led display has applied many countries in the world. Many countries have our projects.
