    IP30 LED Curtain Display P3.91 7.8mm LED Screen Display Panel

    Ask Lasest Price
    Brand Name : Wei Ye Optoelectronics
    Model Number : Weiye poster
    Certification : ccc fc ce fc cb rohs
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000+pcs+15day
    Delivery Time : 7-15day
    • Product Details
    • Company Profile

    IP30 LED Curtain Display P3.91 7.8mm LED Screen Display Panel

    Indoor Window P3.91-7.8mm Window Glass Curtain Transparent Led Display Panels Screen For publicidad advertising


    Function and Technology Character Introduction:


    1. The transparent LED screen is also called the LED glass curtain wall screen; the transparent screen unit modules can be hoisted, stacked, and can be spliced into a large area according to the size of the installation location.


    2. It is a new product developed based on the traditional LED display, which consists of a single LED strip;


    3. High transparency; the transparency is 60%~80%, the transparency is high, and it has little effect on the lighting of the building;


    4. Good heat dissipation performance and light weight;


    5. Suitable for building facades, suitable for installation in front of glass curtain walls.


    Products Applications:

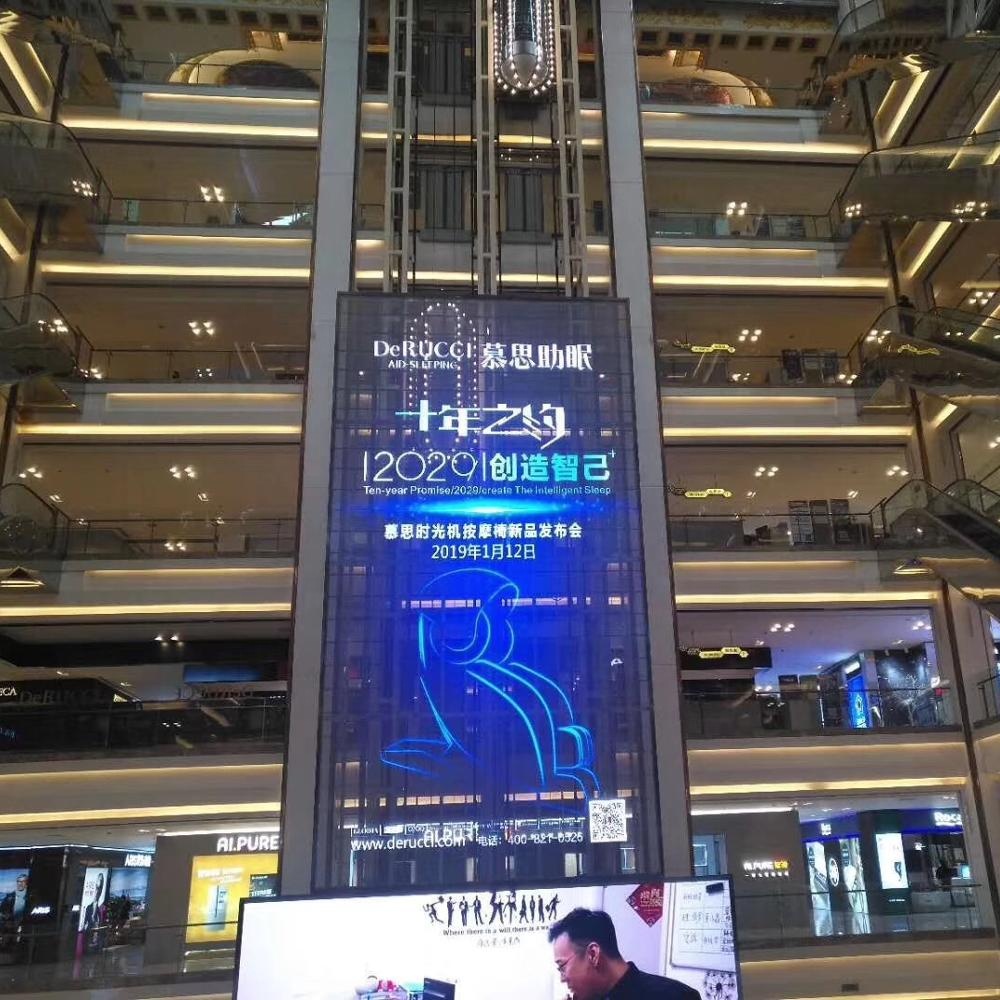

    Widely used in glass curtain walls, shop windows, shopping malls, terminal buildings, automobile exhibition halls, exhibition halls, business halls, 4S shops, office glass curtain walls, etc.


    SPECIFICATIONS Parameters:

    itemP3.91-7.81P7.81P10.41
    Pixel Density(dot/sqm)32,25616,3849,216
    Cabinet size(mm)1000x500x801000x1000x83.71000x1000x80
    Cabinet resolution(dots/sqm)256x64128x12896x96
    Cabinet weight(kg/pc)4.9513.59.6
    Cabinet materialAluminum die-castingAluminum die-castingAluminum die-casting
    Transparent ratio70%77%85%

    Power consumption

    (MAX/AVE)(watt)

    460/150775/230800/240

    Brightness

    (cd/m2)

    1,000-5,5001,000-5,5001,000-5,500
    Refresh rate(Hz)384038403840
    IP GradeIP30IP30IP30

    Weiye poster series led strip display screen advantage:


    1. Light weight, ultra-thin, convenient installation and maintenance, no structure, cost saving and efficiency improvement.


    2. Wide viewing angle and high-definition display>High-quality surface mounted lamp with gold wire copper bracket


    3. Optional maintenance before or after the screen increases the adaptability to installation conditions;


    4. High-definition vision, full-color display, high resolution, clear and sharp images, true restoration of images



    Quality IP30 LED Curtain Display P3.91 7.8mm LED Screen Display Panel for sale
