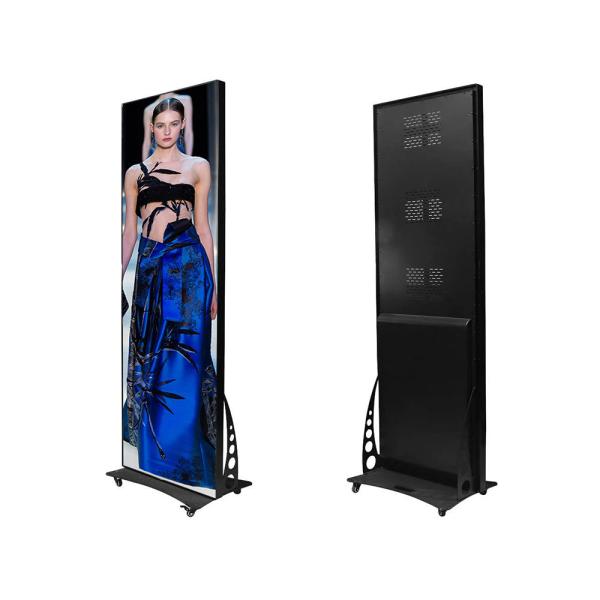

p2.5 floor standing indoor led display retail solution WIFI 4G USB led poster portable digital signage smart led iposter

Function and Technology Character Introduction:

1. P2.5 indoor led advertising machine high brightness, high contrast, high gray scale, the surface of high light transmission LED indoor module powerful high-end display products, through the network cable, USB Disk, WiFi, 4G (remote) to control and update the data. Plug and play don't need installation.

2. p2.5mm indoor LED display service life of more than 10 million hours is double the service life of splicing wall and unlike splicing wall that after aging replacement lamp back light or replacement of lighting,

3. Save operation costs, information update is timely

4. Animated advertising is more likely to create amazing role

5. LED uses cold light-emitting technology, the brightness of outdoor LED display is greater than 8000mcd㎡ .

Products Applications:

Widely used in shopping malls, catering industry, product launches, weddings, hotels, airports, luxury stores, chain stores, reception halls, mobile screens, real-time video, catering industry, reception halls, product launches, mobile screens, chain stores, etc.

SPECIFICATIONS Parameters:

Product parameter
led module
Pixel pitch (mm)	P2.5
Pixel density (point /㎡)	160000
Module size (mm)
Module resolution (WxH)	128X64
Package form	SMD2020
scanning method	1/32S
Refresh rate (Hz)	≥1920/3840(Optional)
White balance brightness (Nits)	＞800
Color temperature (K)	3200-9300(Adjustable )
Gray scale	≥14bit
Frame change frequency	60-120Hz
Viewing angle (horizontal/vertical)	160°/160°
Protection level (front/back)	IP31
Average/peak power consumption (W/㎡)	850/350
Face mask	NO
cabinet
cabinet size (mm)	640X1920
Screen weight (Kg)	15
cabinet module composition (WxH)	2X12
Cabinet resolution (WxH)	256X768
Flatness (mm)	≤0.2
Maintenance method	Pre-maintenance
cabinet material	Die-cast aluminum
Application Environment
Input voltage (V)	110-240
Operating temperature (℃)	-20~50
Working humidity (RH)	10%-95%
Service life (H)	≥100000
Model type (using video processor)	AV,S-Video,VGA,DVI,HDMI,SDI,DP
Control distance	Category 5 network cable :＜100m,Single mode fiber :＜10km
certified product

Weiye poster series led strip display screen advantage:

1. Help to increase product sales and brand visibility and popularity

2. indoor viewing angle can be greater than 160 degrees, outdoor viewing angle can be greater than 120 degrees.

3. Enhance interaction with customers

4. Intelligent adjustment of screen brightness

5. Update the playback in real time, and ensure that the information conveys high efficiency

Wei Ye Introduction
Shenzhen Weiye Optoelectronics Co., Ltd. was established in 2020. It is a professional manufacturer of LED displays integrating production, R&D, and sales. It is also a LED display manufacturer that serves professional integrators. Since its establishment, the company has determined to target the international high-end video technology and guide the development direction of the domestic large-screen display industry at the technical level. Over the years, Wei Ye has continued to grow and develop. It has established the industry's only audio-visual display high-tech industry research and development base and successfully passed the ISO9001 quality management system certification. Its related products have also passed 3C, CE, ROSH and other certifications. At present, Wei Ye has become a first-class brand in the large-screen display industry engaged in product development, production, sales and service, and has become the chief provider of matrix and multi-screen display system solutions in China.

Technology and brand are the foundation for Weiye’s development and growth. For many years, the company has been committed to technology research and development and brand building, using technology to drive the development of the industry, and brand-enhancing products under the guidance of this development idea, including full-color LED indoor, Outdoor display screens, small-pitch LEDs, etc., products have undergone rigorous testing to ensure super stability. The factory will continue to be guided by the ISO9000 quality system to create trustworthy high value-added products for users. Weiye Optoelectronics has successfully established a brand image of precision micro-pitch LED displays and high-end commercial display equipment both inside and outside the industry. Our precision small-pitch products have officially entered the overseas market. We have many high-end customers in the high-end display field at home and abroad, and have won the quality recognition of many channel vendors. The company also plans to set up North American offices, European offices, and Southeast Asian branches to provide global customers with professional pre-sales consultation, intimate sales and after-sales services; to meet customer needs with the fastest response speed.

The company builds a dust-free workshop that is fully compliant with RoHS and ISO standards, and introduces YAMAHA and SAMSUNG precision patch automatic production lines, automatic process testing equipment, automatic assembly, and aging production lines. In terms of the R&D and production process of micro-pitch screens, through technological innovation, it has a number of patented technologies and its own independent research and development control operating system. As a professional product manufacturer in the field of large-screen displays, Shenzhen Weiye Optoelectronics Co., Ltd. is based on a people-oriented enterprise development concept and gathers domestic first-class talents. Its scientific management, first-class service and high-quality professional R & D team are high-performance, high-quality With the strong guarantee of quality products, Wei Ye will always be one step ahead, superior and unique. Pay close attention to the development trend of international mosaic display products, continue to develop new mosaic display products, optimize and upgrade traditional products, integrate into the international cycle, meet market demand, guide market consumption, and enable the company to continue to develop and maintain vitality. Excellent concept, leading technology, professional spirit and scientific attitude are the strong guarantee for Wei Ye to become the chief provider of domestic matrix and multi-screen splicing display system solutions.
